AVI System
- MITL offers Automated Visual Inspection (AVI) Systems for Wafer Die or Package level inspection.
- Different machine configurations with different handling are available.
- Input handling ranging from Jedec tray, tube, vibratory bowl to wafer film frame.
- Output handling ranging from tape and reel, Jedec tray, plastic tube, wafer film frame to waffle pack.
- 6-sided inspection with 3D inspection forms the core process of our solution offerings.

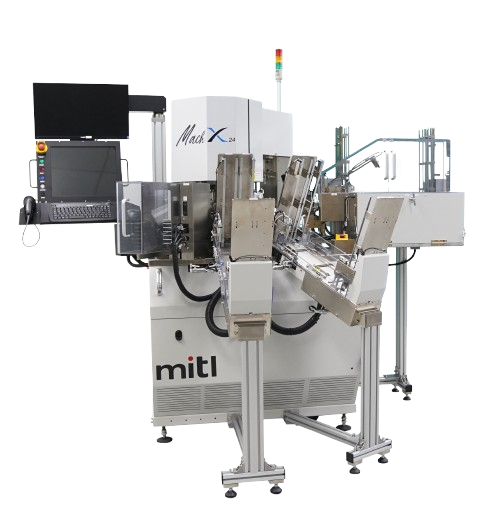

- Tube-to-Tube AVI Handler
- Model name: Mach X24
- Fully automated 6-sided vision inspection rotary (turret-based) machine.
- Different media handling (input/output) configurations available.
- Multiple reject bin sorting
- Integration options:
- Test solution integration
- Laser marking integration

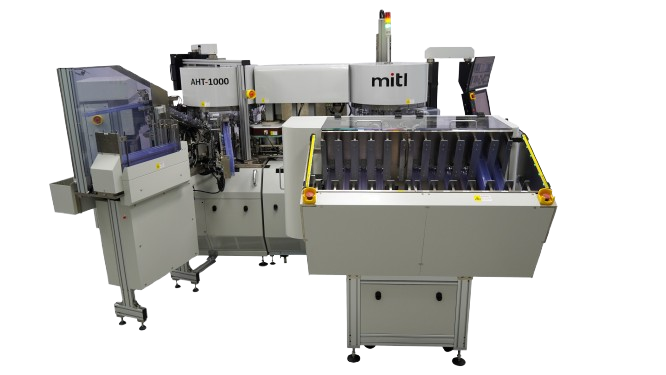

2. Tube-to-Tube Test Handler
- Model name: AHT-1000
- Fully automated test handler consists of
- 6x devices parallel isolation test stations
- 6x ambient test stations
- 2x hot test stations up to 175°C
- 2x final QA ambient test stations
- 6-sided vision inspections system
- Laser marking system
- 8x multi good output tube binning
- Multiple reject bin sorting

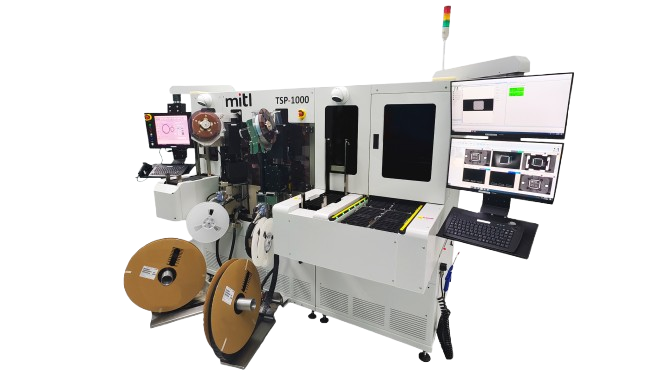

3. Tray Scanner Series AVI Handler
- Model name: TSP-1000
- Jedec tray input to Jedec tray output
- Additional output option – up to 2x tape and reel
- Full AVI system consists of
- 6-sided vision inspection
- 3D vision inspection
- In tray double-stacked & device’s present inspection
- Multiple reject trays sorting
4. Other AVI Handler
- Model name: Mach X20
- High throughput for small devices
- Vibratory bowl input with tape and reel output
- 6-sided vision inspection.
- Small machine footprint 1m x 1m
- Integration options:
- Test solution integration
- Laser marking integration
5. Customized Handler Solutions
-
Please contact to enquire.
